৳ 2,000.00

  • Network coverage diameter: 20KM
  • Type of the optical interface: SC/UPC
  • Hi-sensitivity optical receiver: ≤-27dBm
  • Radiation power: 0-4 dBm
  • Security: ONU authentication mechanism


User trial interface

One fixed 10/100、1000M BASE-T auto-adaptable RJ45 interface

A 1Gbps transmission rate with downlink and uplink symmetry

Network coverage diameter:20 kilometers

Type of the optical interface: SC/PC

Hi-sensible optical receiver:Not less than -26dBm

Radiation power: 2-7dBm

Router price in Bangladesh

Security:ONU authentication mechanism

IEEE 802.3ah

PRC Community Industry Standard (YD/T 1475-2006)

IEEE 802.1D, Spanning Tree
IEEE 802.1w, RSTP
Ethernet – II, Ethernet-SNAP

Port-based VLAN

Service quality
Backpressure flow control (half duplex)
IEEE 802.3x flow control (full duplex)
Head Of Line (HOL) prevention mechanism
IEEE p802.1p, CoS

Four transmission queues on each port are mapped to eight priority values of 802.1p.


Rate Limitation of the Port

Unidirectional Link Detection (UDLD)
Supporting the Dying-Gasp function
Network security

IEEE 802.1x, port-based access controlSupporting the local and remote authentication, EAP termination or transparent transversal

CHAP and EAP authentication

Limiting the maximum number of users on each port

Protecting the port
Controlling the storm of packets
Management configuration

Various management modes such as CLI, Web, SNMP and TELNET

Conducting software upgrade through TFTP and FTP
Local or the server’s syslog logs

Network testing tools such as ping and traceroute

Physical size
170 mm(W) x 98 mm(D) x 28 mm(H)
Installation:Plug and play
Heat cooling

The heat generated by the device in a long-time use (24 hours) cannot lead to the degrading of the performance and the deformation of the components.

Environment requirements

Working condition: 0℃-60℃; 10%-85%; no condensation

Storage condition: -40℃-80℃; 5%-95%; no condensation

Power source

Type of the power adapter: the on-off power adapter

Rated input voltage: 110V~240V, 50/60Hz

Fluctuated range of the input voltage: ±20% (domestic); ±10% (international)

Fuse: Installing the irrecoverable temperature fuse (or temperature resistance) at the input terminal

Power consumption:Up to 10W

Authentication requirements: CCC authentication (domestic), CE authentication (international) or customer-specified authentication.


There are no reviews yet.

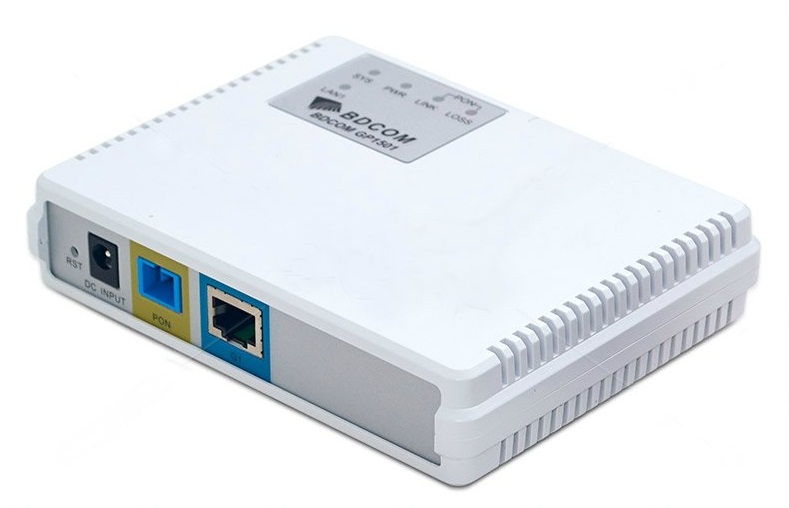

Be the first to review “BDCOM P1501 D1 EPON/ONU”
